Industrial Steel Tubes
Seamless & ERW Tubes in Stainless Steel — Manufactured as per ASTM A213 & A269 Standards
Product Overview
Steel Tubes
Tubes are customarily specified by their Outside Diameter (O.D.) and Wall Thickness (W.T), expressed either in Birmingham Wire Gauge (BWG) or in thousandths of an inch. We manufacture and stock Seamless & ERW tubes in Stainless Steel grades for Heat Exchangers, Boilers, Condensers, and Process industries.
Type
ERW / Seamless
Dim. Standard
ASME B36.19 / B36.10
Gauge (BWG)
12 / 16 / 18 / 20 BWG
Grade
ASTM/ASME A213 & A269 — TP304, 304L, 310, 316, 316L, 317, 317L, 321 & 347
Types
Tube Types
Seamless Tubes
Manufactured without a weld seam by hot or cold drawing process. Ideal for high-pressure, high-temperature applications such as boilers, heat exchangers and superheaters. Offers superior strength and uniformity.

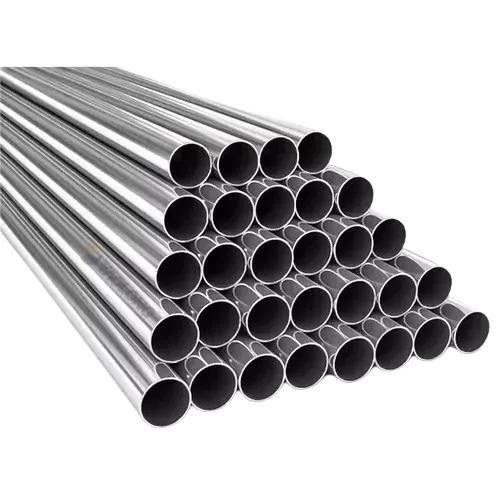

ERW Tubes
Electric Resistance Welded tubes are formed from flat strip and welded longitudinally. Suitable for general service, instrumentation and low to medium pressure applications. Cost-effective with consistent dimensions.
Technical Data
Dimensional Standards
| Parameter | Seamless Tubes | ERW Tubes |
|---|---|---|
| Standard | ASTM A213, A269 | ASTM A269 |
| Dimensional Std. | ASME B36.19 / B36.10 | ASME B36.19 / B36.10 |
| Gauge (BWG) | 12, 16, 18, 20 BWG | 12, 16, 18, 20 BWG |
| O.D. Range | 6.35 mm to 101.6 mm | 6.35 mm to 101.6 mm |
| Wall Thickness | Expressed in BWG or thousandths of an inch | Expressed in BWG or thousandths of an inch |
| Length | Single Random (SRL) / Double Random (DRL) / Fixed Length | Single Random (SRL) / Double Random (DRL) / Fixed Length |
| End Finish | Plain End (PE), Beveled End (BE) | Plain End (PE), Beveled End (BE) |
| Test | Hydrostatic / Eddy Current as per ASTM | Hydrostatic / Eddy Current as per ASTM |
Material Range
Available Grades
Seamless Ferritic & Austenitic Alloy Steel Boiler Tubes
Seamless & Welded Austenitic Stainless Steel Tubing
End Use
Key Applications
Heat Exchangers
High-efficiency heat transfer in refineries, chemical plants and power stations.
Boilers
High-pressure and high-temperature boiler tube applications in power plants.
Condensers
Corrosion-resistant tubing for condenser and evaporator applications.
Petrochemical
Chemical processing, acid handling and corrosive fluid transport systems.
Quality Assurance
Testing & Inspection
ISO 9001:2015 Certified
PED 2014/68/EU Approved
