IndustrialFlanges
Forged Flanges for Connecting Pipes, Valves, Pumps & Equipment — Manufactured as per ASME B16.5 / B16.47 in Class 150# to 2500#
Product Overview
Industrial Flanges
A Flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually Welded or Screwed. Flange joints are made by bolting together two flanges with a Gasket between them to provide a seal.
Type
Weld Neck, Slip On, Socket Weld, Lap Joint, Threaded, Blind, Series A & B Flanges
Dim. Standard
ASME B16.5 / B16.47
Grade
ASTM/ASME A105, A350 LF2 & A182 Gr. F5, F11, F22, F51, F52, F91, F92, F304, F304H, F304L, F310, F316, F316L, F317, F317L, F321 & F347
Class
150# & 300# & 600# & 900# & 1500# & 2500#
Range
1/2" NB TO 24" NB
Types
Flange Range

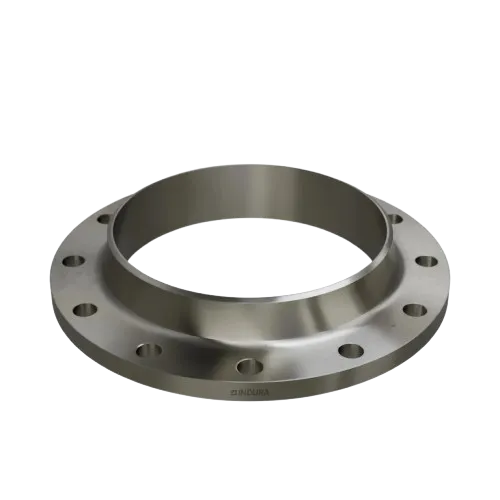

Weld Neck Flange
Long tapered hub butt welded to the pipe. Ideal for high-pressure, high-temperature and cyclic loading applications.

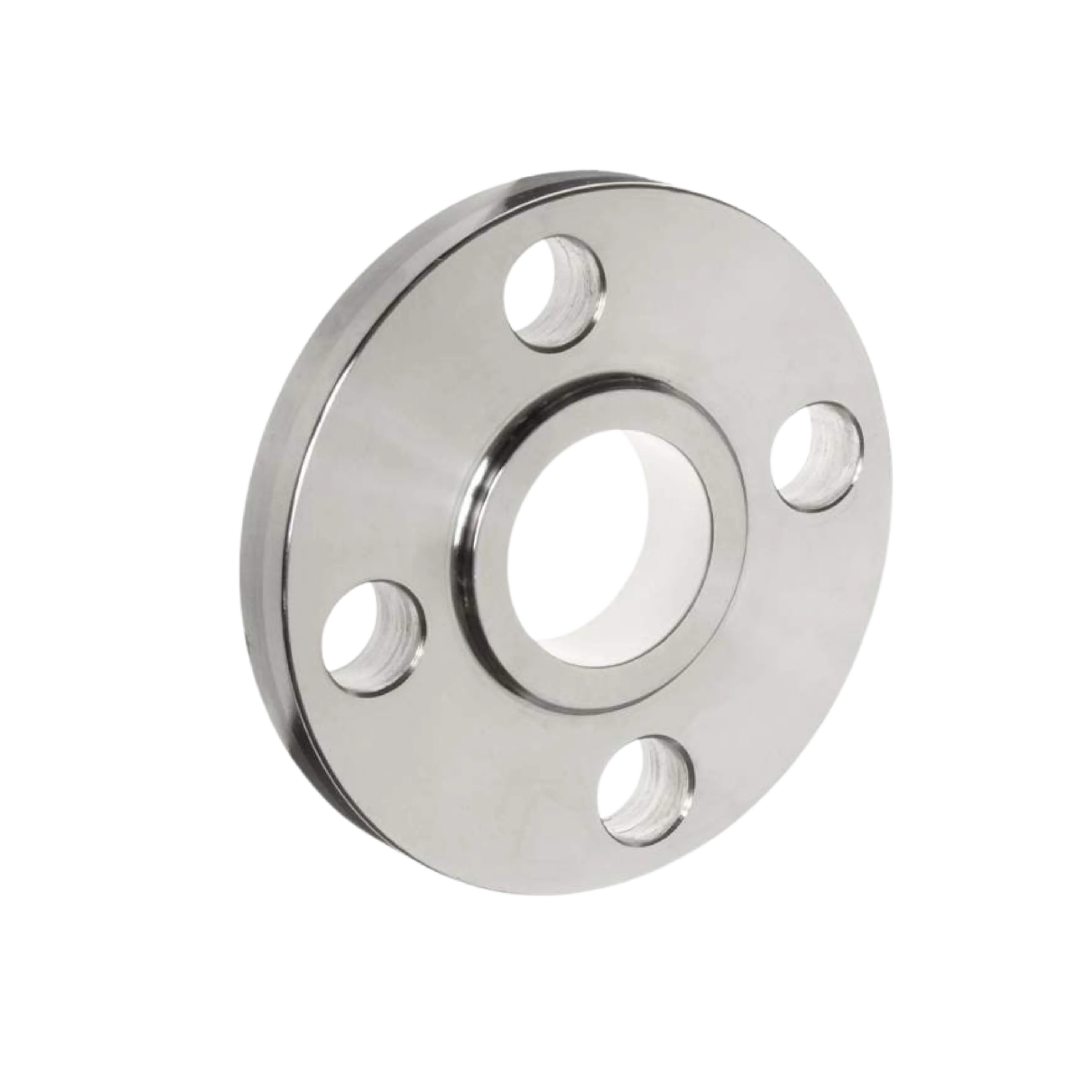

Slip On Flange
Slides over the pipe and is fillet welded inside and outside. Easy to align and economical for low-pressure service.
Socket Weld Flange
Pipe is inserted into the socket bore and fillet welded. Used for small bore, high-pressure piping systems.
Lap Joint Flange
Used with a stub end; the flange freely rotates around the pipe for easy bolt hole alignment. Ideal for frequent dismantling.
Threaded Flange
Screwed onto the pipe without welding. Used where welding is not possible, such as explosive or flammable environments.

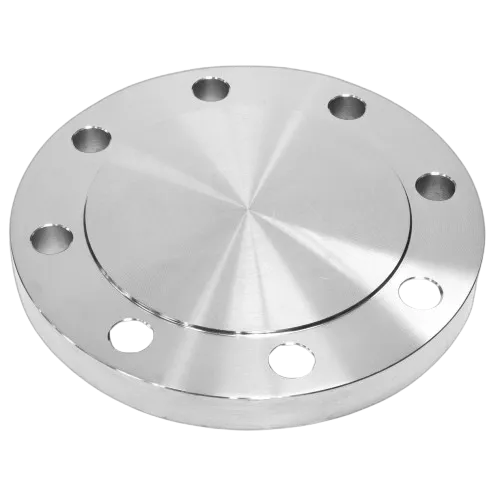

Blind Flange
Solid flange with no bore used to blank off the end of a pipe, valve or pressure vessel opening.
Series A & B Flanges
Series A (IS 6392) and Series B flanges as per Indian and international standards for general industrial piping systems.
Technical Data
Dimensional Standards
| Parameter | Standard Specification |
|---|---|
| Dim. Standard | ASME B16.5 / B16.47 |
| Size (NPS) | 1/2" NB TO 24" NB |
| Class | 150# & 300# & 600# & 900# & 1500# & 2500# |
| Facing | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ), Tongue & Groove (T&G) |
| Connection Type | Welded / Screwed / Lap Joint |
| Grade | ASTM/ASME A105, A350 LF2 & A182 Gr. F5, F11, F22, F51, F52, F91, F92, F304, F304H, F304L, F310, F316, F316L, F317, F317L, F321 & F347 |
Material Range
Available Grades
ASTM / ASME A182 F
ASTM / ASME A105
ASTM / ASME A350 (Low Temp)
ASTM / ASME A182 F
End Use
Key Applications
Oil & Gas
Pipeline connections, valve isolation and equipment flanging in refineries and upstream facilities.
Power Plants
High-pressure steam, boiler feed water and turbine piping flange connections.
Petrochemical
Process piping, reactor and vessel nozzle connections in chemical plants.
Industrial
Water treatment, shipbuilding, structural and general industrial piping systems.
Quality Assurance
Testing & Inspection
ISO 9001:2015 Certified
PED 2014/68/EU Approved
Request a Technical Quote
Share your requirements — flange type, grade, size, class, facing, quantity — and our technical team will respond within 24 hours.
