Socketweld Fittings
Small Bore Socket Weld Pipe Fittings for High-Pressure Applications — Manufactured as per ASME B16.11 in Class 3000#, 6000# & 9000#
Product Overview
Socketweld Pipe Fittings
A Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. In contrast to buttweld fittings, Socket Weld fittings are mainly used for small pipe diameter (small bore piping); generally for piping whose nominal diameter is NPS 2 or smaller.
Type
Elbow 45°/90°, Tee, Cross, End Caps, Full Coupling, Half Coupling, Reducing Coupling, Reducer Insert, Union
Dim. Standard
ASME B16.11
Grade
ASTM/ASME A105, A350 LF2 & A182 Gr. F5, F11, F22, F51, F52, F91, F92, F304, F304H, F304L, F310, F316, F316L, F317, F317L, F321 & F347
Class
3000# & 6000# & 9000#
Range
1/2" NB TO 4" NB
Types
Fitting Range
Elbow 45°/90°
Socket weld elbows for changing flow direction at 45° and 90° in small bore piping.
Tee
Socket weld tee for branching flow in three directions in high-pressure systems.
Cross
Four-way socket weld cross fitting for multi-directional flow distribution.

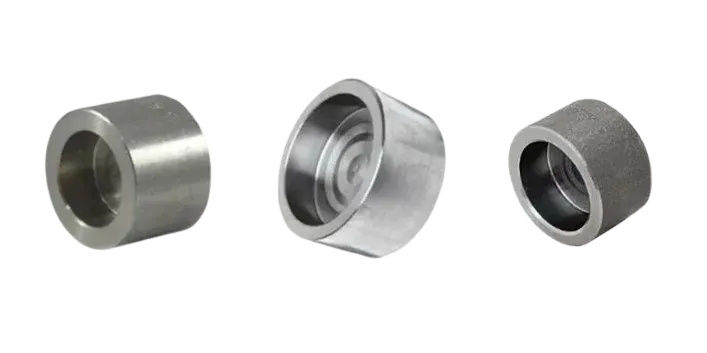

End Caps
Socket weld end caps to seal and close pipe ends in pressure systems.

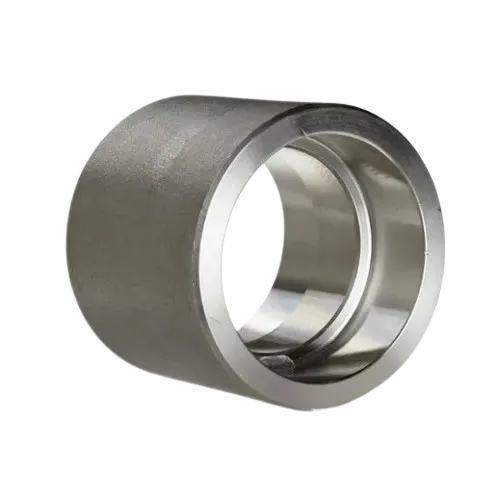

Full Coupling
Full socket weld coupling for joining two pipes of the same diameter.

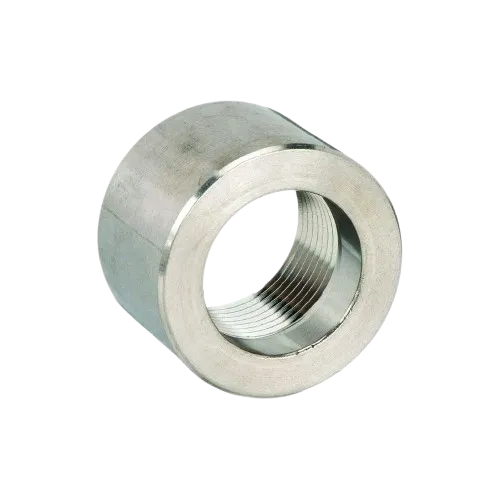

Half Coupling
Half coupling for branch connections on pipes or pressure vessels.
Reducing Coupling
Socket weld reducing coupling for joining two pipes of different diameters.

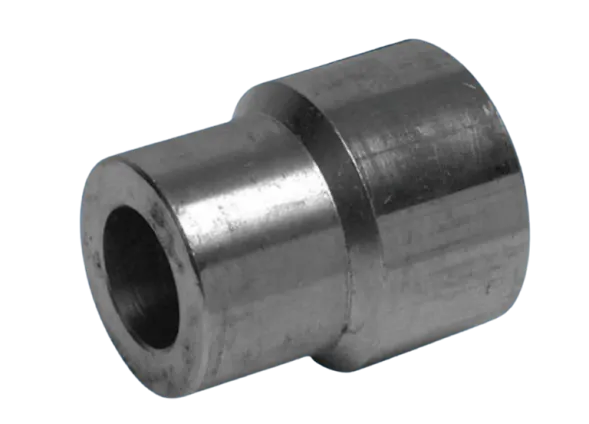

Reducer Insert
Insert type reducer for pipe size reduction within a socket weld coupling.

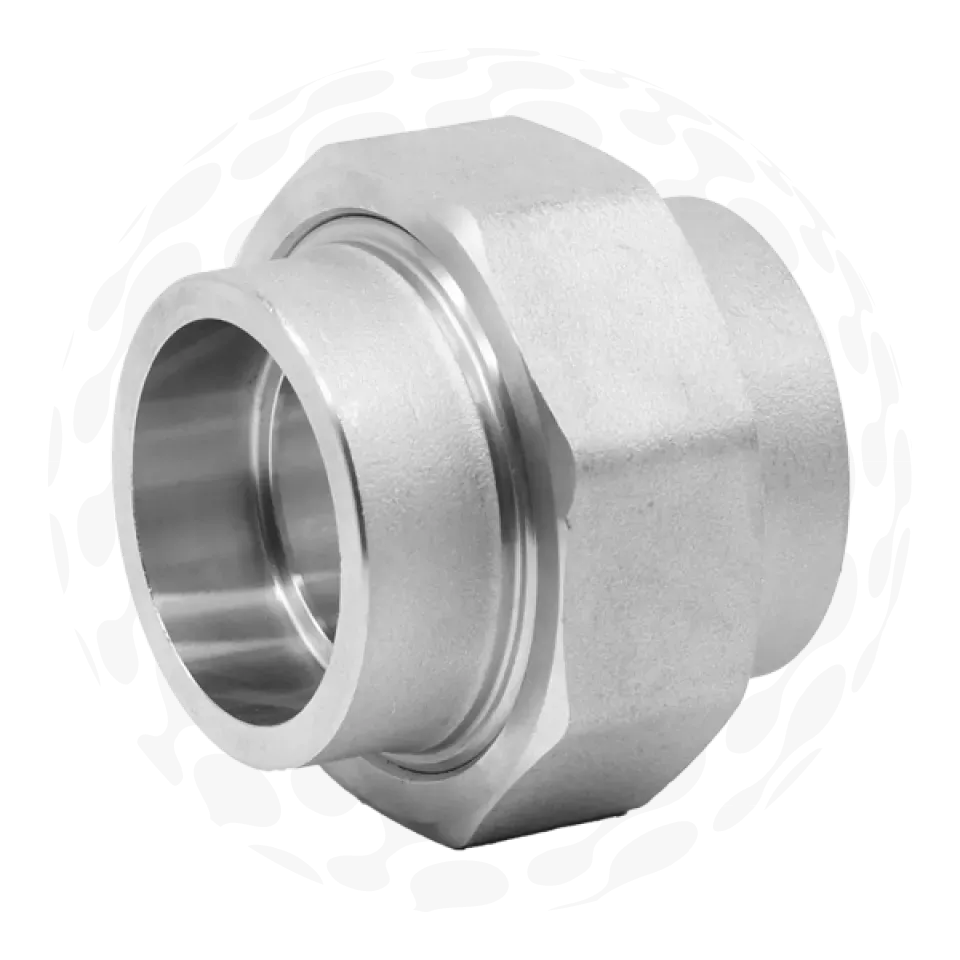

Union
Socket weld union for easy disconnection and reconnection of pipe sections.
Technical Data
Dimensional Standards
| Parameter | Standard Specification |
|---|---|
| Dim. Standard | ASME B16.11 |
| Size (NPS) | 1/2" NB TO 4" NB |
| Class | 3000# & 6000# & 9000# |
| End Finish | Socket Weld (SW) |
| Grade | ASTM/ASME A105, A350 LF2 & A182 Gr. F5, F11, F22, F51, F52, F91, F92, F304, F304H, F304L, F310, F316, F316L, F317, F317L, F321 & F347 |
Material Range
Available Grades
ASTM / ASME A182 F
ASTM / ASME A105
ASTM / ASME A350 (Low Temp)
ASTM / ASME A182 F
End Use
Key Applications
Oil & Gas
High-pressure small bore piping in refineries and upstream facilities.
Power Plants
High-pressure steam and boiler feed water piping systems.
Petrochemical
Chemical and process piping requiring leak-proof permanent joints.
Industrial
Hydraulic, instrumentation and general high-pressure industrial piping.
Quality Assurance
Testing & Inspection
ISO 9001:2015 Certified
PED 2014/68/EU Approved
Request a Technical Quote
Share your requirements — fitting type, grade, size, class, quantity — and our technical team will respond within 24 hours.
