Branch Connection Fittings
Olet Fittings for Branch Outlet Connections from Larger to Smaller Pipes — Manufactured as per ASME B16.11 / MSS SP-95 / MSS SP-97
Product Overview
Branch Connection Fittings (Olets)
Branch Connection Fittings (also known as O'lets) are fittings which provide an outlet from a larger pipe to a smaller one (or one of the same size). The main pipe onto which the branch connection is welded is usually called the Run or Header Size.
Type
Weldolet, Sockolet, Threadolet, Latrolet, Elbolet, Nippolet, Sweepolet
Dim. Standard
ASME B16.11 / MSS SP-95 / MSS SP-97
Grade
ASTM/ASME A105, A350 LF2 & A182 Gr. F5, F11, F22, F51, F52, F91, F92, F304, F304H, F304L, F310, F316, F316L, F317, F317L, F321 & F347
Class
3000# & 6000# & 9000# & Sch.10 to Sch.XXS
Branch Size
1/2" NB TO 4" NB
Pipe (Run) Size
2" NB TO 48" NB
Types
Olet Range
Weldolet
Butt weld branch outlet fitting for high-pressure, high-temperature piping systems. Provides full reinforcement to the run pipe.
Sockolet
Socket weld branch outlet for small bore high-pressure piping. Branch pipe is inserted into the socket and fillet welded.
Threadolet
Threaded branch outlet fitting for small bore piping where a threaded connection is required on the branch.

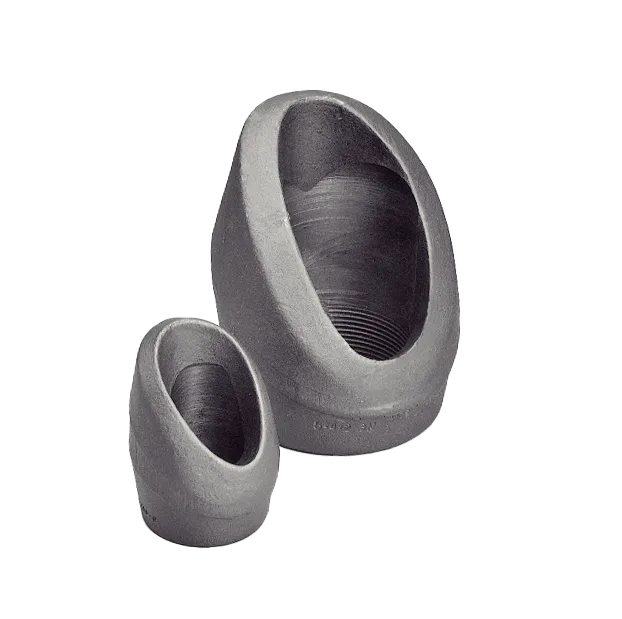

Latrolet
Lateral branch outlet fitting providing a 45° branch connection on the run pipe for angled flow diversion.

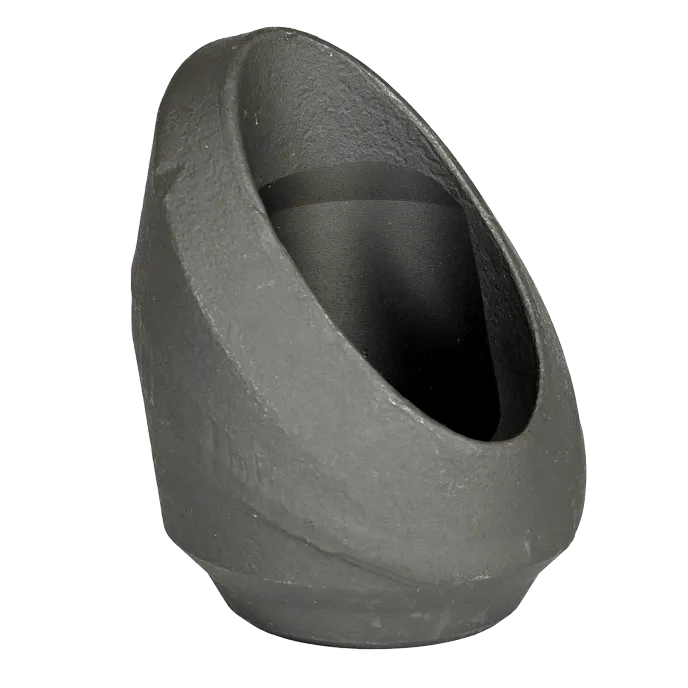

Elbolet
Branch outlet fitting used on elbows to provide an instrumentation or drain connection on a 90° elbow.
Nippolet
Combined branch outlet and nipple fitting providing a direct threaded or plain end branch connection on the run pipe.
Sweepolet
Contoured butt weld branch outlet with a smooth sweep radius, reducing stress concentration and turbulence at the branch.
Technical Data
Dimensional Standards
| Parameter | Standard Specification |
|---|---|
| Dim. Standard | ASME B16.11 / MSS SP-95 / MSS SP-97 |
| Branch Size (NPS) | 1/2" NB TO 4" NB |
| Pipe (Run/Header) Size | 2" NB TO 48" NB |
| Class | 3000# & 6000# & 9000# |
| Schedule | Sch.10 to Sch.XXS |
| Grade | ASTM/ASME A105, A350 LF2 & A182 Gr. F5, F11, F22, F51, F52, F91, F92, F304, F304H, F304L, F310, F316, F316L, F317, F317L, F321 & F347 |
Material Range
Available Grades
ASTM / ASME A182 F
ASTM / ASME A105
ASTM / ASME A350 (Low Temp)
ASTM / ASME A182 F
End Use
Key Applications
Oil & Gas
Branch connections on headers and run pipes in refineries and upstream piping.
Power Plants
High-pressure steam line branch connections and boiler piping systems.
Petrochemical
Process piping branch outlets in chemical plants and petrochemical facilities.
Industrial
Instrumentation tapping, drain and vent connections on industrial pipelines.
Quality Assurance
Testing & Inspection
ISO 9001:2015 Certified
PED 2014/68/EU Approved
