Buttweld Fittings
Industrial Pipe Fittings for Changing Direction, Branching & Diameter Transitions — Manufactured as per ASME B16.9 & MSS SP-43
Product Overview
Buttweld Pipe Fittings
Buttweld Pipe Fittings is defined as a part used in a Piping System, for Changing Direction, Branching or for change of Pipe Diameter, and which is Mechanically joined to the system. There are many different types of Fittings and they are the same in all Sizes and Schedules as the Pipe.
Type
Elbow 45°/90° LR, Elbow 90° SR, Elbow 180° LR/SR, End Caps, Reducer Concentric & Eccentric, Tee Equal & Reducing, Stub End (MSS SP-43/B16.9), Swage Nipple Conc. & Ecc.
Dim. Standard
ASME B16.9 / B36.10 / MSS SP-43
Schedule
5, 5S, 10, 10S, 20, 30, 40, 40S, 60, 80, 80S, 100, 120, 140, 160, STD, XS & XXS
Size
1/2" NB TO 24" NB
Grade
ASTM/ASME A234 GR.WPB, A420 WPL6 & A403 Gr.WP304, 304L, 316, 316L, 310, 317, 317L, 321 & 347
Types
Fitting Range

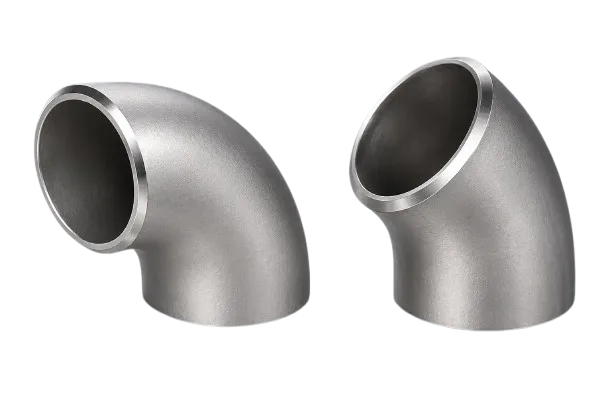

Elbow 45°/90° LR
Long Radius Elbow for smooth flow direction change at 45° and 90°.
Elbow 90° SR
Short Radius Elbow for compact piping layouts requiring 90° turns.
Elbow 180° LR/SR
Return Elbow for complete flow reversal in Long and Short Radius.

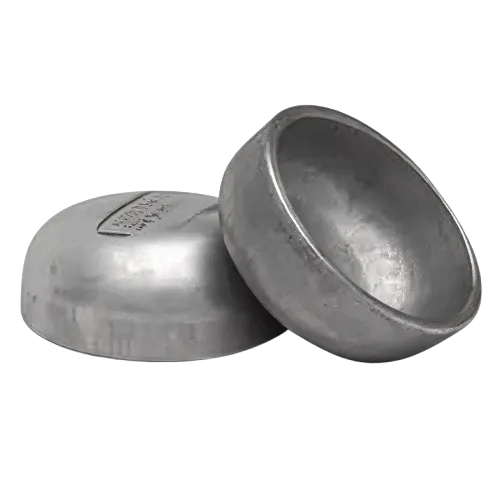

End Caps
Used to close the end of a pipe in pressure piping systems.
Reducer Concentric
Concentric Reducer for inline pipe diameter reduction with aligned centerline.
Reducer Eccentric
Eccentric Reducer for offset centerline diameter reduction, prevents air pockets.
Tee — Equal & Reducing
Equal and Reducing Tees for branching flow in piping networks.

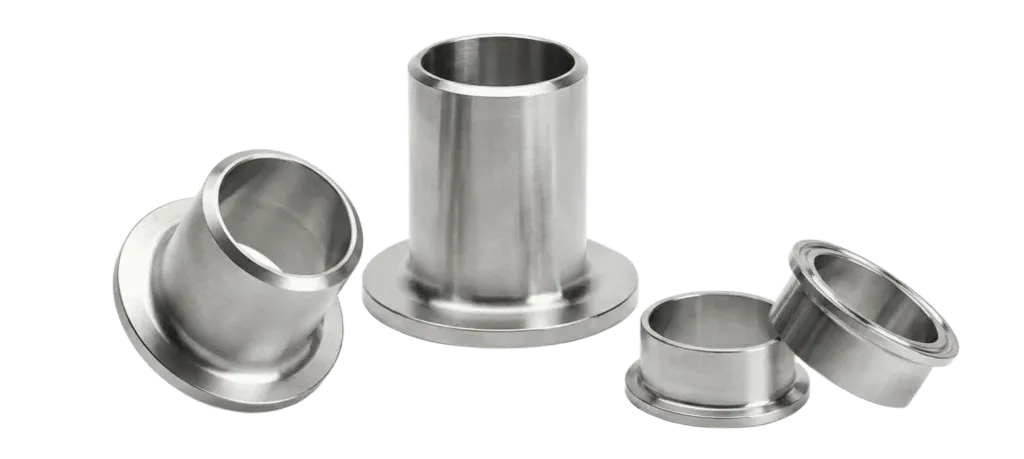

Stub End (MSS SP-43/B16.9)
Used with Lap Joint Flanges for easy alignment and rotation in piping.

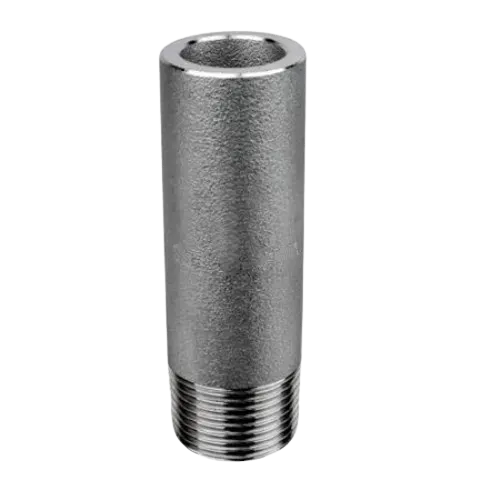

Swage Nipple — Conc. & Ecc.
Concentric and Eccentric Swage Nipples for pipe size reduction with threaded or plain ends.
Technical Data
Dimensional Standards
| Parameter | Standard Specification |
|---|---|
| Standard | ASME B16.9 / B36.10 & MSS SP-43 |
| Size (NPS) | 1/2” NB TO 24” NB |
| Schedule (Thickness) | 5, 5S, 10, 10S, 20, 30, 40, 40S, 60, 80, 80S, 100, 120, 140, 160, STD, XS, XXS |
| Type | Seamless / Welded / Fabricated |
| End Finish | Beveled End (BE) for Buttwelding |
| Processing | Hot Forming / Cold Forming |
Material Range
Available Grades
ASTM / ASME A403 WP
ASTM / ASME A234
ASTM / ASME A420 (Low Temp)
ASTM A234 (WP Grades)
End Use
Key Applications
Oil & Gas
Critical piping for refineries, upstream exploration and storage facilities.
Power Plants
Steam generation systems and high-pressure boiler piping networks.
Petrochemical
Chemical processing and handling of corrosive industrial fluids.
Industrial
General structural, shipbuilding, and water management systems.
Quality Assurance
Testing & Inspection
ISO 9001:2015 Certified
PED 2014/68/EU Approved
Request a Technical Quote
Share your requirements — fitting type, grade, size, schedule, quantity — and our technical team will respond within 24 hours.
